Your Complete Leak-Proof Checklist
Aluminum's lower strength compared to steel, thermal conductivity, and tendency for galvanic corrosion require special installation considerations. Improper installation can result in leaks, rapid corrosion, or flange failure.
Misalignment, over-torquing, gasket damage, and moisture intrusion are leading causes of aluminum flange failures. Following proper procedures eliminates these issues.
Examine flanges for damage, corrosion, or contamination. Clean flange faces thoroughly with clean cloth. Remove any oil, grease, or dirt that could compromise gasket sealing.

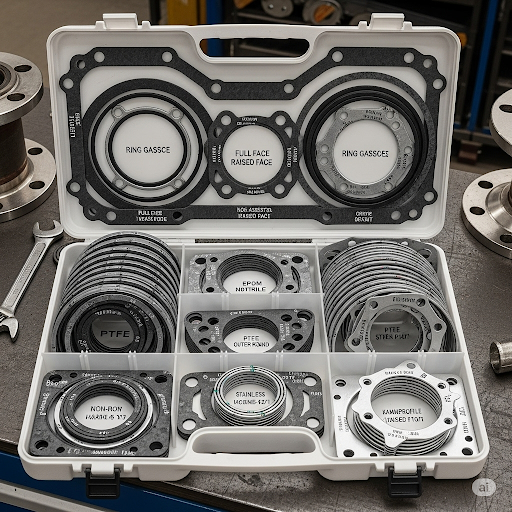

Select gasket material compatible with conveyed fluid and operating temperature. Never reuse old gaskets unless manufacturer specifically allows. Protect gaskets from moisture and contamination during storage.
Use stainless steel or aluminum bolts to avoid galvanic corrosion. Clean bolts to remove rust and contamination. Verify proper bolt length and thread condition.
Align pipe centerlines before connecting. Use alignment clamps or guides to ensure proper positioning. Misaligned flanges cause uneven gasket loading and eventual leakage.
Position gasket carefully between flanges. Ensure gasket sits properly on flange faces without wrinkles or folds. For raised-face flanges, gasket should remain fully supported by raised area.
Use proper tools to hold flanges in alignment during assembly. Temporary studs or alignment bolts help maintain position. Use calibrated torque wrenches for consistent tightening.
| Bolt Size | Material | Torque Spec | Notes |
|---|---|---|---|
| 1/2" | Stainless 304 | 25-35 ft-lbs | Use anti-seize compound |
| 3/4" | Stainless 304 | 60-80 ft-lbs | Use anti-seize compound |
| 1" | Stainless 304 | 120-150 ft-lbs | Use anti-seize compound |
Use a criss-cross (star) pattern to apply pressure evenly. Tighten bolts gradually in multiple passes, increasing torque incrementally. This ensures even gasket compression without distortion.
Apply anti-seize compound to bolt threads to prevent galling and ensure consistent torque values. Use materials compatible with the fluid system (check for compatibility).
Calibrate torque wrenches every 6-12 months. Verify calibration before high-pressure installations. Document calibration records for critical applications.
Perform hydrostatic testing at 1.5x design pressure for new systems. Use soap solution testing to identify slow leaks. Pressure test per ASME PCC-1 guidelines.
Re-torque bolts after 24 hours of operation, then again at 1 week. Some gaskets (especially soft elastomers) settle after initial loading. Re-torquing prevents delayed leakage.
| Issue | Cause | Action |
|---|---|---|
| Immediate leakage | Misalignment, damaged gasket | Stop system, inspect, re-assemble with new gasket |
| Leaking after 24 hours | Insufficient torque, gasket settling | Re-torque bolts gradually |
| Continued weeping | Wrong gasket material, incompatible fluid | Replace with correct gasket material |
| Corrosion at bolt holes | Galvanic corrosion, moisture intrusion | Use stainless fasteners, isolating washers |
Inspect flanged connections monthly in the first year, then quarterly. Look for leakage, corrosion, bolt loosening, or gasket deterioration.
Track system pressure and temperature. Deviations from normal operating conditions often indicate flange or gasket problems developing.
Document torque values applied, gasket materials used, and any maintenance performed. This information is valuable for troubleshooting and system optimization.
| Material | Temperature Range | PTFE | CNAF | Graphite | EPDM |
|---|---|---|---|---|---|
| Water | 32-200°F | Yes | Yes | Yes | Yes |
| Steam | 32-400°F | No | Limited | Yes | No |
| Oils | 32-300°F | Yes | Yes | Yes | No |
| Chemicals | Varies | Yes | Limited | No | No |
Guidelines for Pressure Boundary Bolted Flange Joint Assembly. Essential reference for flange assembly procedures and torque protocols.
Specifies flange dimensions, pressure ratings, and material requirements. Ensures flange compatibility and proper connection design.
Proper aluminum flange installation is critical for leak-free, long-lasting performance. By following these procedures—careful preparation, proper alignment, controlled torquing, and regular maintenance—you ensure reliable flange connections that perform as designed.
